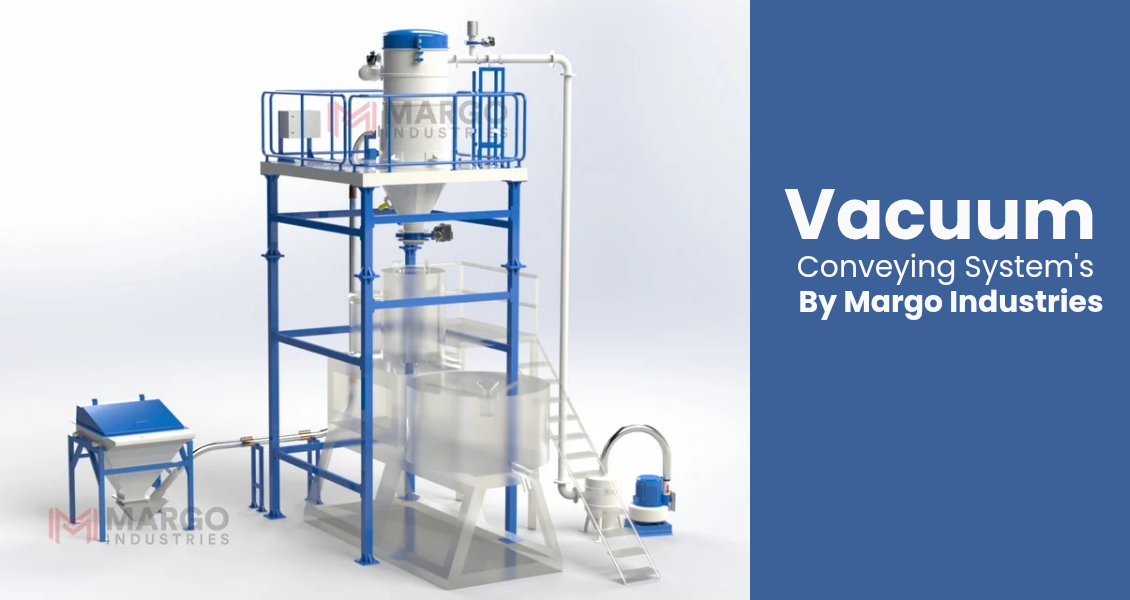

Vacuum Conveying System

A vacuum conveying system is an automated material handling system that uses a vacuum (negative pressure) to move powders, granules, and fluids through pipes or hoses. This system is known for being clean, efficient, and safe, as it is a non-contact method of transport that reduces material degradation, wear, and environmental contamination.

Why Vacuum Conveying?

• Dust-Free: Unlike conventional conveying systems, vacuum conveying helps keep the surrounding environment free from dust and airborne contaminants.
• Clean and Hygienic: Especially critical in industries like food processing, pharmaceuticals, and chemicals where hygiene is a top priority.
• Efficiency: Reduces operational costs, improves production speed, and allows for faster material handling without manual intervention.

Understanding the functioning theory of a vacuum conveying system is important for adapting efficiency. Let’s break that step by step:

Key Components:

1. Vacuum pump :This vacuum is the heart of the conventional system. The vacuum pumps provide the necessary suction to pull the material through the pipelines. Depending on system design and requirements, a number of vacuum pumps are used, including:
   • Positive displacement pumps: These pumps are ideal for low to medium material volumes and applications where precise suction is required.
   • Regenerative blowers: Often used in low-pressure applications where high air volumes are needed, such as in conveying light powders or pellets.
   • Liquid ring pumps: Typically used for applications requiring high vacuum levels or when handling hazardous or abrasive materials.
2. Conveying Pipeline: The pipeline is the channel through which materials move from one point to another. It is designed to reduce friction, reduce wear and secure the smooth flow of the material.
3. Receiver / Cyclone Separator: At the end of the pipeline, a receiver or separator is used to collect the material from the air. The cyclone separator uses centrifugal force to separate the materials from the air before the air is filtered and recirculated.
4. Airlock / Rotary Valve: This device ensures that the vacuum pressure inside the system is maintained. It prevents air from entering the system when materials are unloaded from the conveying pipeline.
5. Filters: To ensure that the system remains hygienic and safe, high-efficiency filters such as HEPA filters or bag filters are used to capture fine particulates, ensuring that the air returned to the environment is free from dust.
6. Control System (SCADA/PLC): The SCADA or PLC (programmable logic controller) system monitors the entire vacuum conveying process, including parameters such as airflow, pressure, and material flow. This system ensures real-time control, improves process visibility, and helps with troubleshooting.

Step-by-Step Operation:

1. Material Intake: Materials are introduced into the system either manually or via automatic loading systems like bag dump stations or big bag unloaders.
2. Vacuum Generation: The vacuum pump generates suction that draws the material into the pipeline. Materials are moved by the air pressure through the pipes.
3. Conveying Process: The materials are conveyed along the pipeline toward the destination point, using the vacuum created by the pump.
4. Material Discharge: At the end of the pipeline, materials are separated from the airflow in a receiver or separator and are either sent to a storage vessel or to the next step in the production line.

Vacuum conveying systems come in several different types, each designed to meet specific requirements in different industries. The most common types here are:

Key Components:

1. Centralized Vacuum Conveying System
   • Overview: This system features a single vacuum source that serves multiple production lines or stations within a facility. It’s a highly effective solution for large manufacturing plants where numerous conveying lines are required.
   • Applications: Large-scale manufacturing operations, multi-line facilities, and high-volume production.
   • Advantages:
     • Reduced maintenance costs, as there is only one central vacuum unit.
     • Easier system monitoring and control, as everything is centralized.
2. Dedicated Vacuum Conveying System
   • Overview: A dedicated system serves one specific process or production line. It is tailored to handle specific materials and needs, such as a dedicated line for pharmaceutical-grade powders.
   • Applications: Pharmaceutical production, food processing, and any process requiring strict material handling.
   • Advantages:
     • High efficiency and customization to specific materials.
     • More control over material flow and vacuum levels.
3. Portable Vacuum Conveying System
   • Overview: A portable vacuum conveying system is smaller, flexible, and can be moved to different locations within the plant. These systems are useful in plants where temporary or small-scale conveying is required.
   • Applications: Used for small batch production or during maintenance in large plants.
   • Advantages:
     • Flexibility to move between different production lines.
     • Compact design, ideal for facilities with limited space.
4. Dense Phase vs. Lean Phase Vacuum Conveying Systems
   • Dense Phase Conveying:
     • Operation: Involves conveying materials in a dense, slow-moving flow at high pressure and low velocity.
     • Applications: Used for heavier, more abrasive materials that need to be transported carefully, such as cement, plastics, and resins.
     • Advantages: Lower wear on equipment, less energy consumption, and reduced material degradation.
   • Lean Phase Conveying:
     • Operation: Materials are conveyed at high velocity but low pressure, in a light, faster-moving flow.
     • Applications: Ideal for light powders, grains, or small pellets.
     • Advantages: High-speed conveying, energy-efficient, and effective for conveying light materials.

1. Dust-Free Operation
   • One of the biggest advantages of vacuum conveying systems is their ability to keep the working environment free of air dust. This not only improves hygiene in convenience, but also reduces the health risk for workers, especially in industries such as drugs and food processing where pollution is a serious concern.
2. Improved Product Quality
   • With precise control over material handling and conveyance, vacuum conveying systems ensure the quality of the product. By maintaining accurate flow rates and preventing pollution, the system helps to produce high quality materials.
3. Increased Safety
   • Safety is significantly enhanced with vacuum conveying systems. These systems reduce the risk of spread, leaks and accidents by fully attaching the material. In industries where dangerous materials are handled, vacuum ensures that toxic or combustible substances are safe.
4. Reduced Labor Costs
   • Vacuum systems automate the material handling process, reducing the need for manual labor. Workers no longer have to carry or move heavy bags or containers, significantly cutting down labor costs and improving workplace safety.
5. Energy Efficiency
   • By utilizing low-pressure pneumatic conveying, these systems require less energy compared to traditional mechanical systems, leading to significant savings on energy bills.
6. Flexibility and Scalability
   • Vacuum conveying systems can be easily scaled to accommodate changes in production needs. Adding or relocating conveying pipelines is simple, making it easy to adapt the system to different materials or production processes.

1. PVC & Polymer Manufacturing
   • Vacuum conveying is frequently used in the PVC industry to handle materials such as calcium carbonate, resins, and other additives. It offers a cleaner and more effective method of mixing and extruding plastic compounds by guaranteeing that the materials are transported without contamination.
2. Pharmaceutical Industry
   • Pharmaceutical manufacturers use vacuum conveying systems to transport active pharmaceutical ingredients (APIs), excipients, and other raw materials with precision. Vacuum conveying prevents contamination and ensures a sterile environment, which is crucial for meeting regulatory standards.
3. Food Processing
   • In food processing, vacuum conveying is used to move powders, granules, and other food ingredients without contamination. These systems also help to reduce the risk of foodborne illness by providing a clean and hygienic material transfer method.
4. Chemical Processing
   • Vacuum conveying is used in food processing for moving granules, powders, and other food ingredients without damaging them. By offering a clean and hygienic method of material transfer, these systems also aid in lowering the risk of foodborne illness.
5. Bulk Material Handling in Mining
   • In the mining industry, vacuum conveying systems can be used to move fine powders or chemicals used in processing minerals, providing both safety and efficiency in handling hazardous materials.

Routine maintenance is crucial to ensure the longevity and efficiency of vacuum conveying systems. Here are some common maintenance practices:

• Regularly Check Filters: Filters should be cleaned or replaced regularly to maintain air quality and ensure proper suction.
• Monitor Vacuum Pressure: Regularly check vacuum levels to ensure consistent performance. Low vacuum levels can indicate leaks or blockages in the system.
• Inspect Pipes and Hoses: Ensure there are no blockages or damage to the pipes and hoses. Damaged components should be replaced immediately.
• Lubricate Moving Parts: Components like rotary valves and vacuum pumps should be lubricated to avoid wear and tear.
